Setting up drip irrigation system

I have a fish room in my basement, it change out water almost 50 gallons of water everyday. it’s a waste not to use it. Beside, the aquarium has natural fish waste. That’s a good fertilizer. My fish room has an automatic water change system. The water was pumped into the fish tank and flow out of the back and collected in the reservoir. When the water is full, the flow switch will be on to pump the water out through the wall to another outdoor reservoir.

Fish Room
Fish Room
Fish Room Automatic Water change using Drip Irrigation
Fish Room Automatic Water change using Drip Irrigation
Indoor Reservoir
Indoor Reservoir containing a flow switch, the pump the water out when it’s full. I have a redundant flow switch if one failed, another one will pump the water out to the sump pump in my basement.

The outlet to the outdoor reservoir has a filter. The filter will catch any debris in the water so it won’t clog the drip emitter. The the reservoir there is another flow switch, this will turn on when the outdoor reservoir is full. The pump will start pump the water to the drip irrigation system and distributed to my fig trees.

Filter on the outlet
Filter on the outlet
Flow Switch
Flow Switch
Outdoor Reservoir
Outdoor Reservoir
Pump
Pump

I use 1/2 inch rain bird irrigation tubing as the main distribution line. Each pump connects to approximately 15 trees. I branch t he irrigation lines so the each branch is no more than 6 trees. I use tab in connectors that tab into the main line and connect to smaller 1/8 inch irrigation tubing. I attached the emitter at the end of the irrigation tubing and install it within the pot.

Main Line
Main Line
Connector and Irrigation tubing
Connector and Irrigation tubing
Adjustable Emitter
Adjustable Emitter
Adjustable Emitter
Adjustable Emitter
Fig Orchard

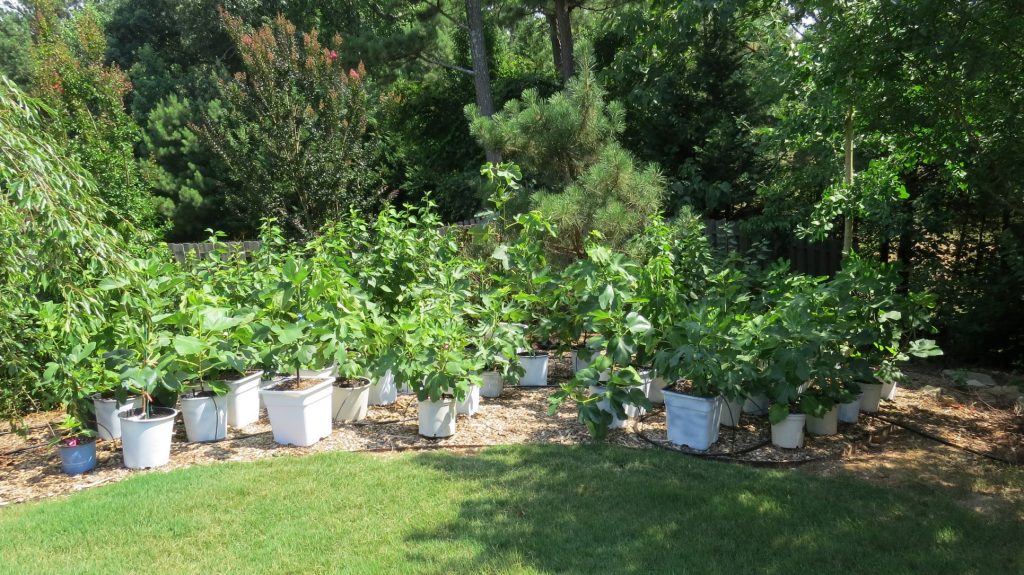

Fig Orchard Completed with Irrigation system
Fig Orchard Completed with Irrigation system
Fig Orchard Completed with Irrigation system
Fig Orchard Completed with Irrigation system
Fig Orchard Completed with Irrigation system

I like to use the adjustable emitters. Those emitters can be taken apart to clean up. The fixed emitters cannot be cleaned when clogged. They had to be replaced. I have to cut the piece off the irrigation tubing to connect a new emitter. It’s easier just simply take the cap of the adjustable emitter off and clean.

I am using the water from the water from my fish room. It can be easily to modified using the municipal water and timer controlled water timer.
